VC10V Simple and sporty small PLC
As the VFD manufacturer in china, V&T has rich experience in electric drive fields. Adopting brand-new vector control technology, VTS series inverter can be compatible with the control of synchronous motor, asynchronous motor and reluctance motor, as well as the encoders with multiple specification and abundant communication interface and support English liquid crystal display, five-digit digital pipe display operation panel; and with the protection functions of usability, extendability, small volume, light weight and perfection, VTS series Mini AC drive can meet the medium-high application demands.
PRODUCT FEATURES AND ADVANTAGES
Built-in 2-way 100KHZ+2-way 60KHz pulse output
Excellent expandability, expansion unit see VC10 expansion section.
Comes with 3 communication ports (1 way RS232 programming port, 2-way RS485)
has all the features of the VC10 and optimizes the performance of the product
Control scale(1/0):16-172 points (basic unit 16/24/30/40/60)
Built-in 2-way 50KHZ+4-way l0KHz high-speed counting

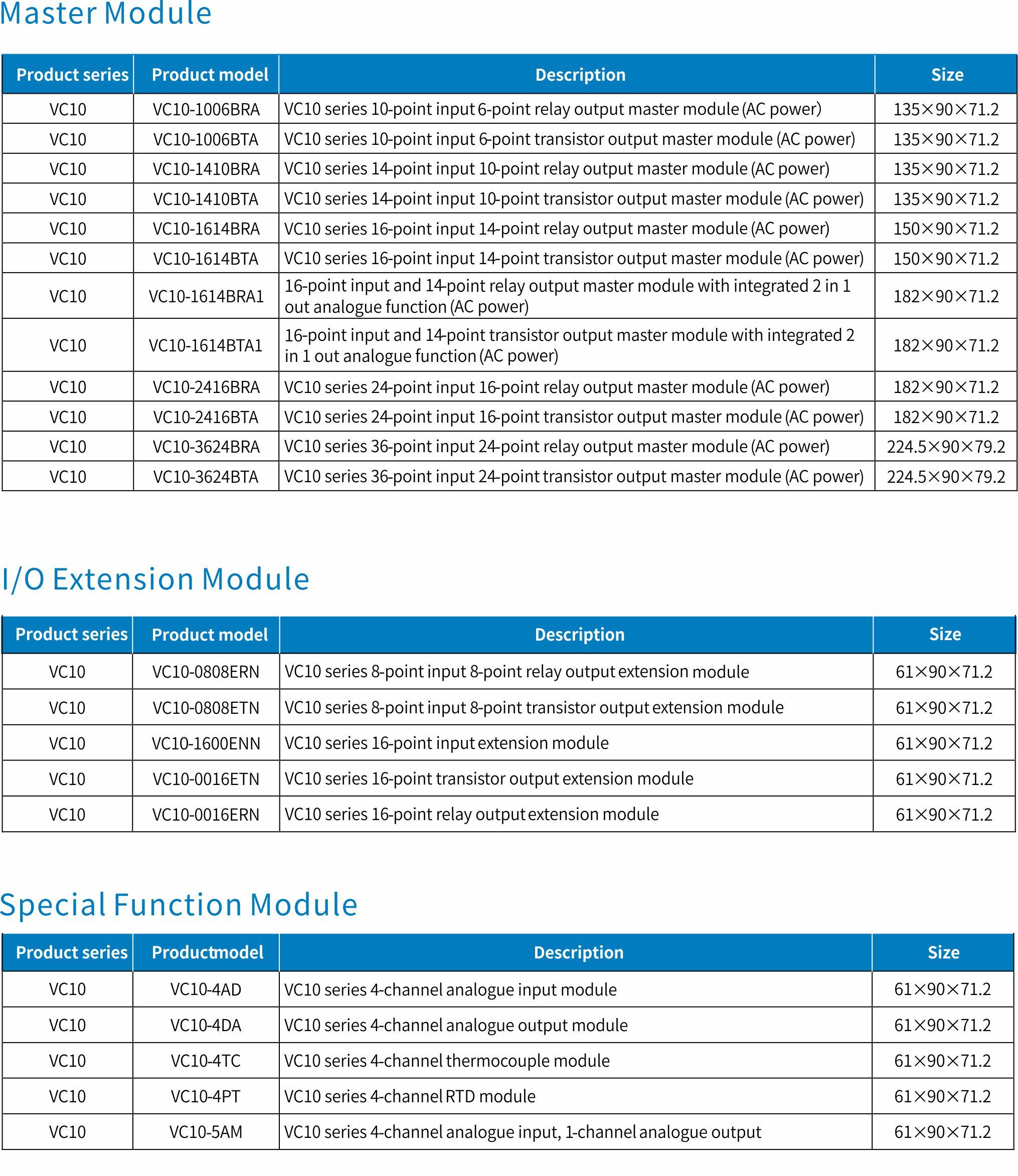

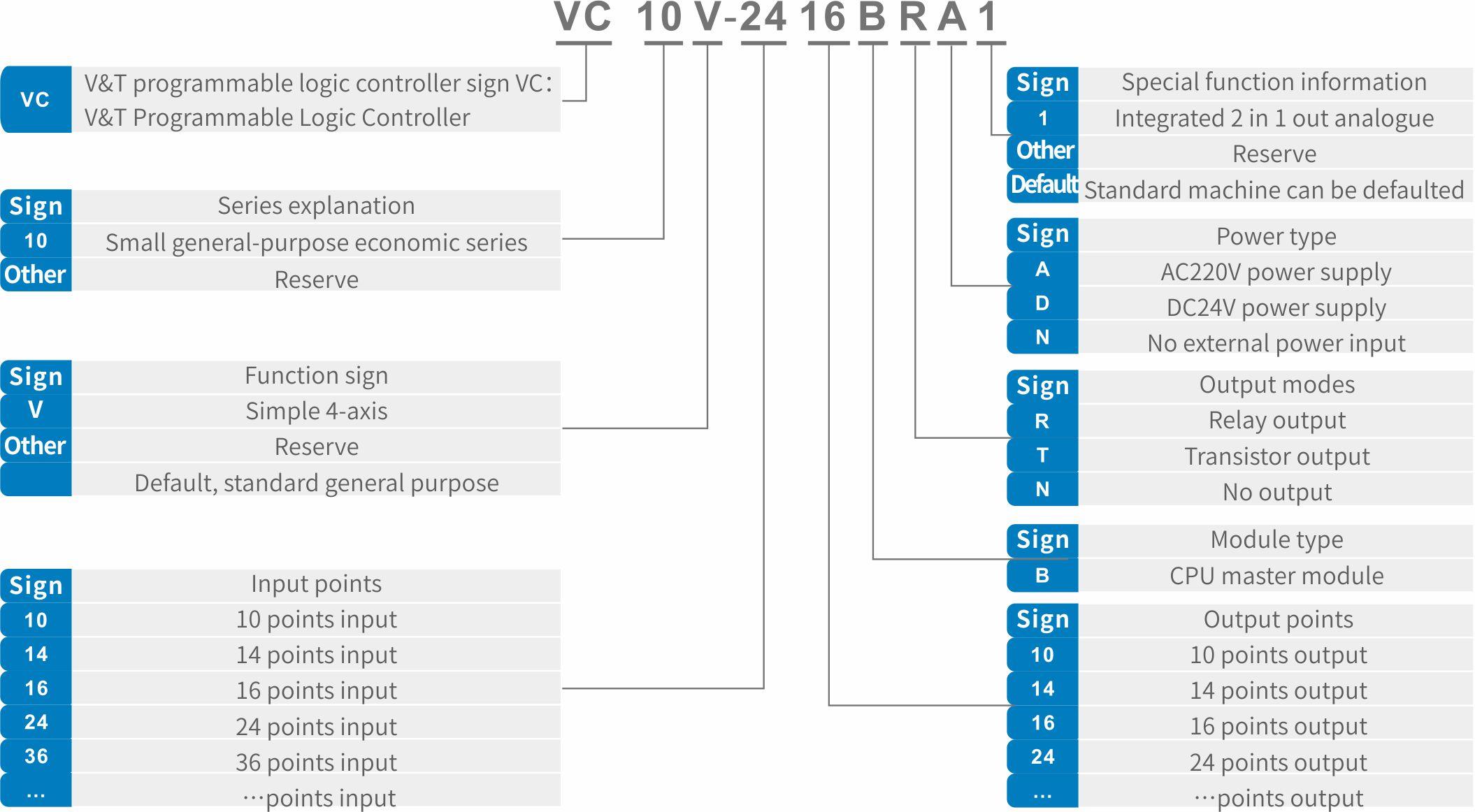

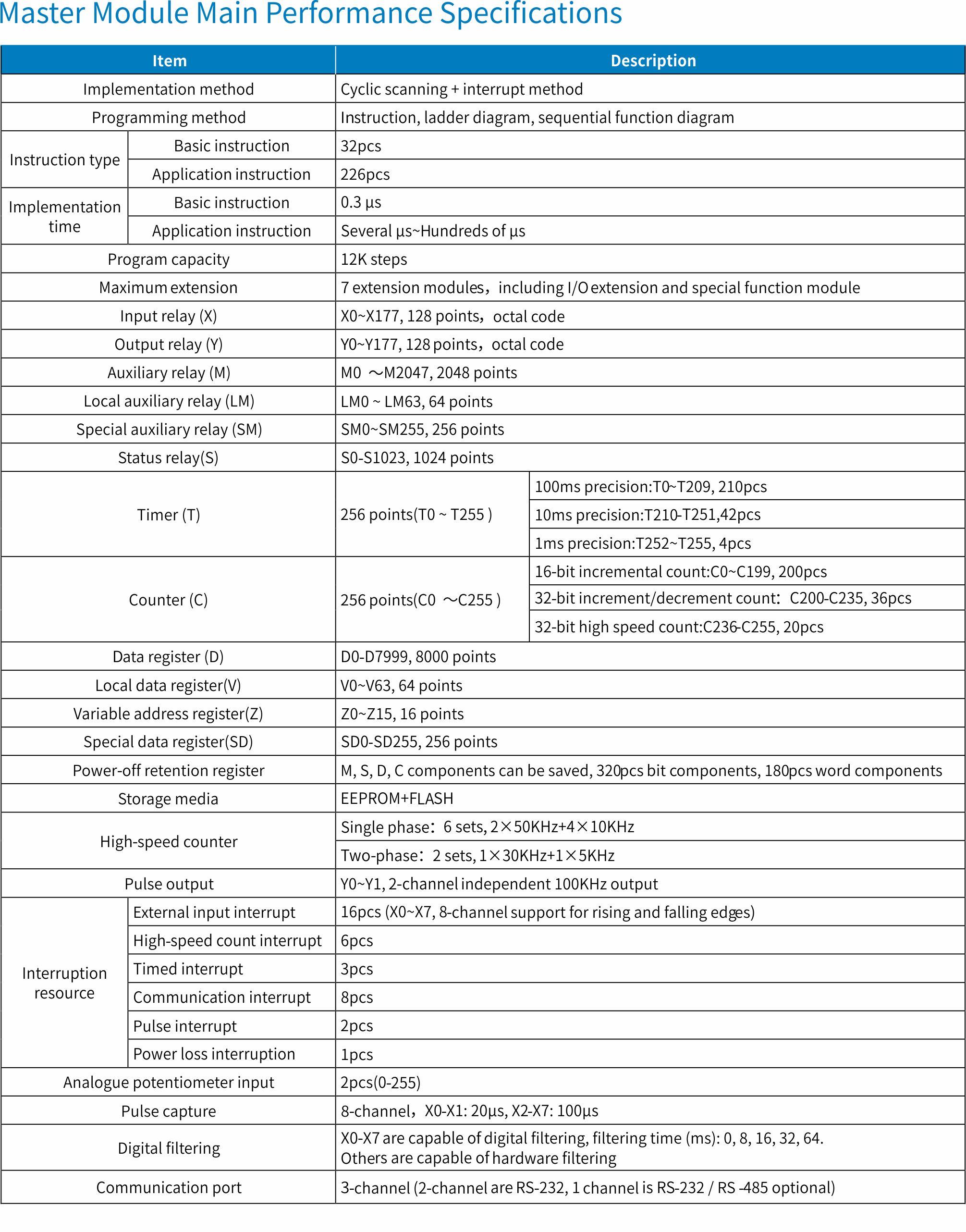

Specification Parameters
