VC20 Series high-performance general-purpose PLC
VC20 series is a high-performance general-purpose small PLC, with powerful I/O expansion capabilities and communication networking capabilities, can be used for high-speed data processing and analogue processing, with high stability, high reliability, large capacity, high-speed computing capabilities. It has powerful functions and high cost performance.
PRODUCT FEATURES AND ADVANTAGES
Reliable programme security
8-digit multi-level password protection, unique password compression and encryption technology and stored in the PLC to effectively protect the user's intellectual property rights. Real-time clock The main module has a built-in real-time clock (RTC) and provides a perpetual calendar function.
Ladder diagrams, instruction tables, sequential function charts
Online modification, Online editing, online downloading, online debugging Online modification has no step limit and can be modified at will.
High speed and large capacity
High computing speed — basic instruction: 0.09μs. Large program capacity — up to 12k steps without expansion.
Convenient and fast programming function
Three programming languages.
High stability and reliability
Ultra-wide operating voltage: AC85~280V. Strict three-proof treatment of the board, adapt to the harsh field environment.User programme EEPROM permanent storage. Ultra-strong environmental adaptability .Excellent anti-interference
Super strong I/0 expansion
/O points can be expanded up to 512 points.Expandable up to 8 special function modules. Abundant programming instructions.Number of instructions.Basic instructions —32pcs.Application instructions — 221pcs

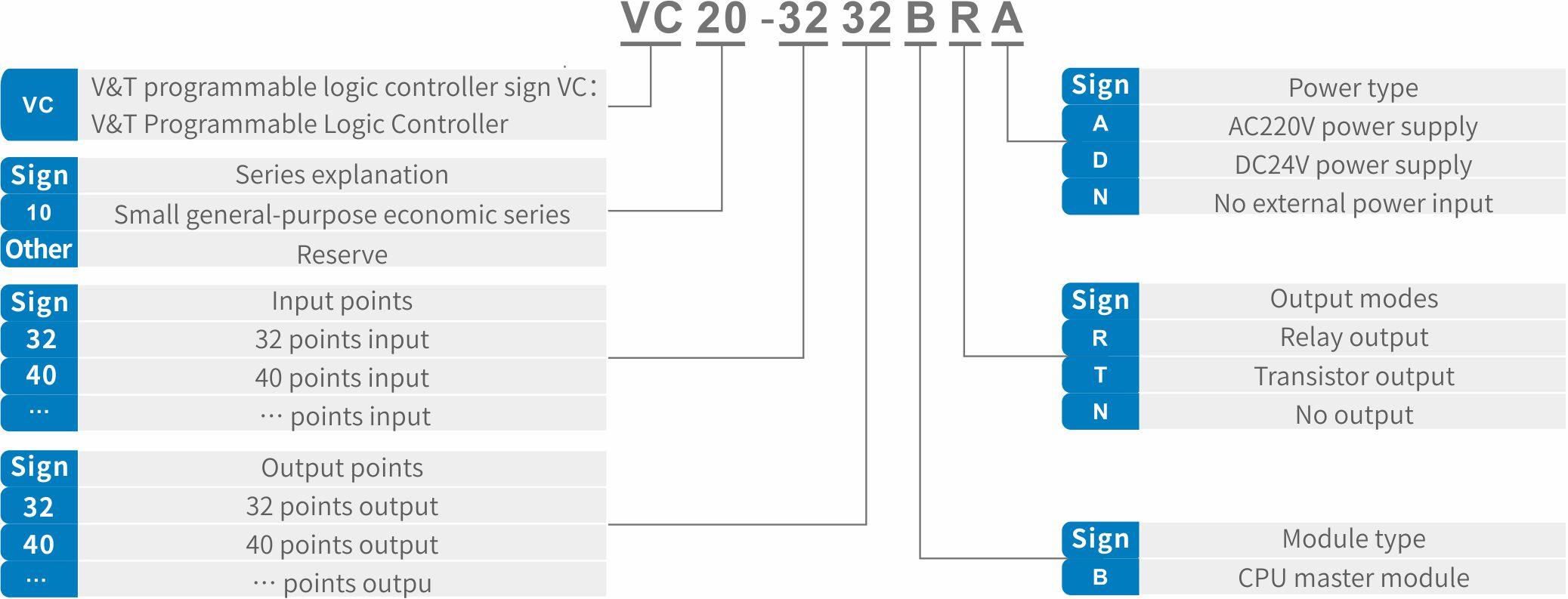

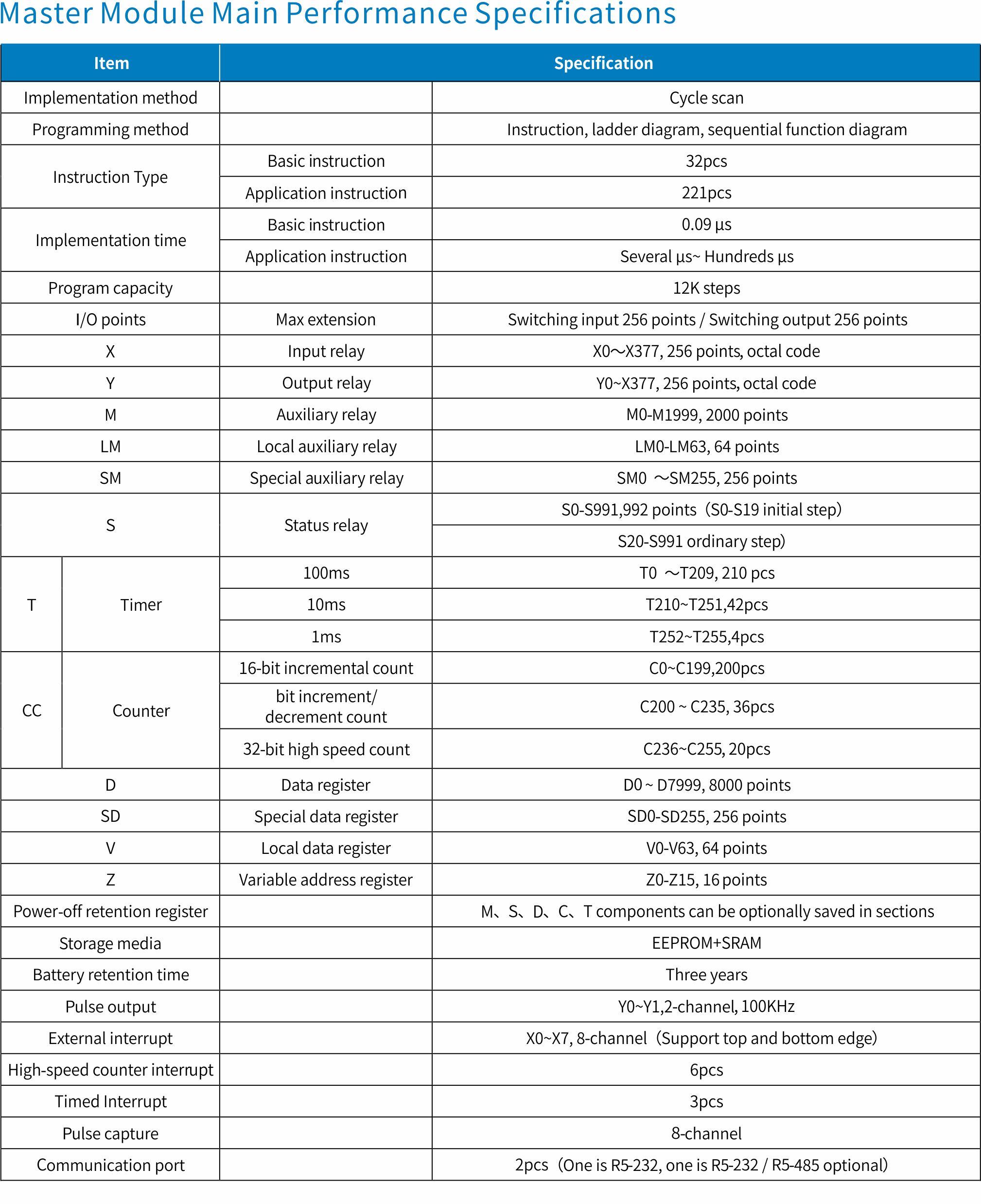

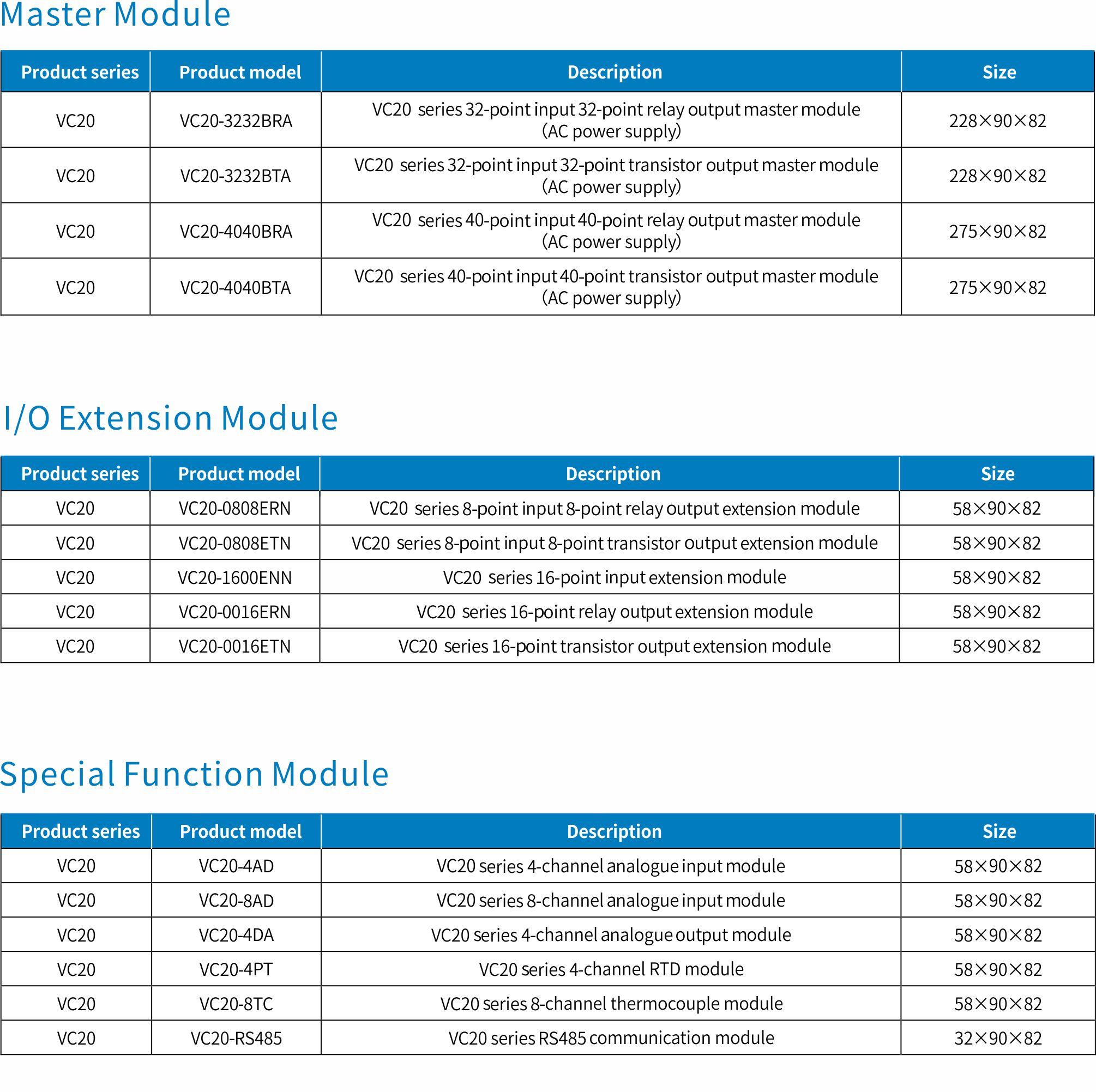

Specification Parameters
